However, without the slats and now measuring from the leading edge of the actual wing itself, instead of from the leading edge of the slats, it calculates to 22% and 29% of the now 1270mm chord. This is just the sort of range that history has shown that most wings would call for. Actually slats are an extended part of the wing. When slats are extended they move a little ahead of the wing and leave little space between them and the wing leading edge. Condition I - No slats As the air flow approaches the wing it gets divided into two paths.

Slots

Slats are aerodynamic surfaces on the leading edge of the wings of fixed-wing aircraft which, when deployed, allow the wing to operate at a higher angle of attack. A higher coefficient of lift is produced as a result of angle of attack and speed, so by deploying slats an aircraft can fly at slower speeds, or take off and land in shorter distances. They are usually used while landing or performing maneuvers which take the aircraft close to the stall, but are usually retracted in normal flight to minimize drag. They decrease stall speed.

Slats are one of several high-lift devices used on airliners, such as flap systems running along the trailing edge of the wing.

The position of the leading-edge slats on an airliner (Airbus A310-300). In this picture, the slats are drooped. Note also the extended trailing-edge flaps.
Slats on the leading edge of an Airbus A318 of Air France
Wing
Automatic slats of a Messerschmitt Bf 109
The wing of a landing Airbus A319-100. The slats at the leading edge and the flaps at the trailing edge are extended.

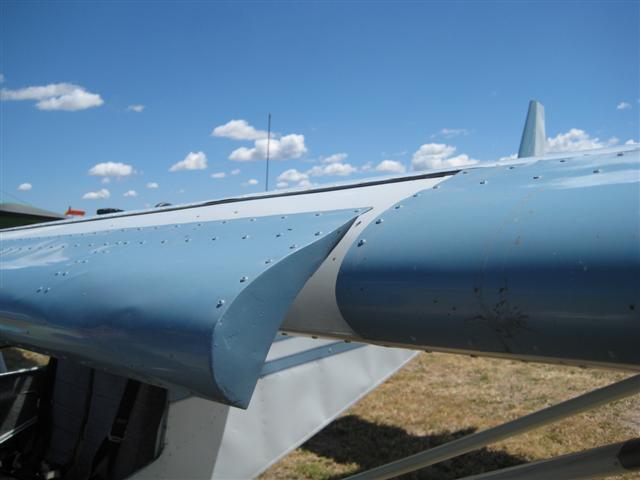

The Fieseler Fi 156Storch had permanently extended slots on its leading edges (fixed slats).

Types[edit]

Types include:

Automatic
The spring-loaded slat lies flush with the wing leading edge, held in place by the force of the air acting on them. As the aircraft slows down, the aerodynamic force is reduced and the springs extend the slats. Sometimes referred to as Handley-Page slats.
Fixed
The slat is permanently extended. This is sometimes used on specialist low-speed aircraft (these are referred to as slots) or when simplicity takes precedence over speed.
Powered
The slat extension can be controlled by the pilot. This is commonly used on airliners.

Operation[edit]

The chord of the slat is typically only a few percent of the wing chord. The slats may extend over the outer third of the wing, or they may cover the entire leading edge. Many early aerodynamicists, including Ludwig Prandtl, believed that slats work by inducing a high energy stream to the flow of the main airfoil, thus re-energizing its boundary layer and delaying stall.[1] In reality, the slat does not give the air in the slot a high velocity (it actually reduces its velocity) and also it cannot be called high-energy air since all the air outside the actual boundary layers has the same total heat. The actual effects of the slat are:[2][3]

The slat effect
The velocities at the leading edge of the downstream element (main airfoil) are reduced due to the circulation of the upstream element (slat) thus reducing the pressure peaks of the downstream element.
The circulation effect
The circulation of the downstream element increases the circulation of the upstream element thus improving its aerodynamic performance.
The dumping effect
The discharge velocity at the trailing edge of the slat is increased due to the circulation of the main airfoil thus alleviating separation problems or increasing lift.
Off the surface pressure recovery
The deceleration of the slat wake occurs in an efficient manner, out of contact with a wall.
Fresh boundary layer effect
Each new element starts out with a fresh boundary layer at its leading edge. Thin boundary layers can withstand stronger adverse gradients than thick ones.[3]

Wing Slots And Slats

The slat has a counterpart found in the wings of some birds, the alula, a feather or group of feathers which the bird can extend under control of its 'thumb'.

History[edit]

A319 slats during and after landing

Slats were first developed by Gustav Lachmann in 1918. The stall-related crash in August 1917 of a Rumpler C aeroplane prompted Lachmann to develop the idea and a small wooden model was built in 1917 in Cologne. In Germany in 1918 Lachmann presented a patent for leading-edge slats.[4] However, the German patent office at first rejected it as the office did not believe the possibility of postponing the stall by dividing the wing.

Wing slots and slats game

Independently of Lachmann, Handley Page Ltd in Great Britain also developed the slotted wing as a way to postpone the stall by delaying separation of the flow from the upper surface of the wing at high angles of attack, and applied for a patent in 1919; to avoid a patent challenge, they reached an ownership agreement with Lachmann. That year an Airco DH.9 was fitted with slats and test flown.[5] Later, an Airco DH.9A was modified as a monoplane with a large wing fitted with full-span leading edge slats and trailing-edge ailerons (i.e. what would later be called trailing-edge flaps) that could be deployed in conjunction with the leading-edge slats to test improved low-speed performance. This was later known as the Handley Page H.P.20[6] Several years later, having subsequently taken employment at the Handley-Page aircraft company, Lachmann was responsible for a number of aircraft designs, including the Handley Page Hampden.

Licensing the design became one of the company's major sources of income in the 1920s. The original designs were in the form of a fixed slot near the leading edge of the wing, a design that was used on a number of STOL aircraft.

During World War II, German aircraft commonly fitted a more advanced version of the slat that reduced drag by being pushed back flush against the leading edge of the wing by air pressure, popping out when the angle of attack increased to a critical angle. Notable slats of that time belonged to the German Fieseler Fi 156Storch. These were similar in design to retractable slats, but were fixed and non-retractable. This design feature allowed the aircraft to take-off into a light wind in less than 45 m (150 ft), and land in 18 m (60 ft). Aircraft designed by the Messerschmitt company employed automatic, spring-loaded leading-edge slats as a general rule, except for the Alexander Lippisch-designed Messerschmitt Me 163BKomet rocket fighter, which instead used fixed slots built integrally with, and just behind, the wing panel's outer leading edges.

Post-World War II, slats have also been used on larger aircraft and generally operated by hydraulics or electricity.

Research[edit]

Several technology research and development efforts exist to integrate the functions of flight control systems such as ailerons, elevators, elevons, flaps, and flaperons into wings to perform the aerodynamic purpose with the advantages of less: mass, cost, drag, inertia (for faster, stronger control response), complexity (mechanically simpler, fewer moving parts or surfaces, less maintenance), and radar cross-section for stealth. These may be used in many unmanned aerial vehicles (UAVs) and 6th generation fighter aircraft. One promising approach that could rival slats are flexible wings.

In flexible wings, much or all of a wing surface can change shape in flight to deflect air flow. The X-53 Active Aeroelastic Wing is a NASA effort. The adaptive compliant wing is a military and commercial effort.[7][8][9]
